Main Features

Smart Design | Thermal Separation Temperature Control System | Double-Door Pass Type

Model : ELP-800H

elp-800h

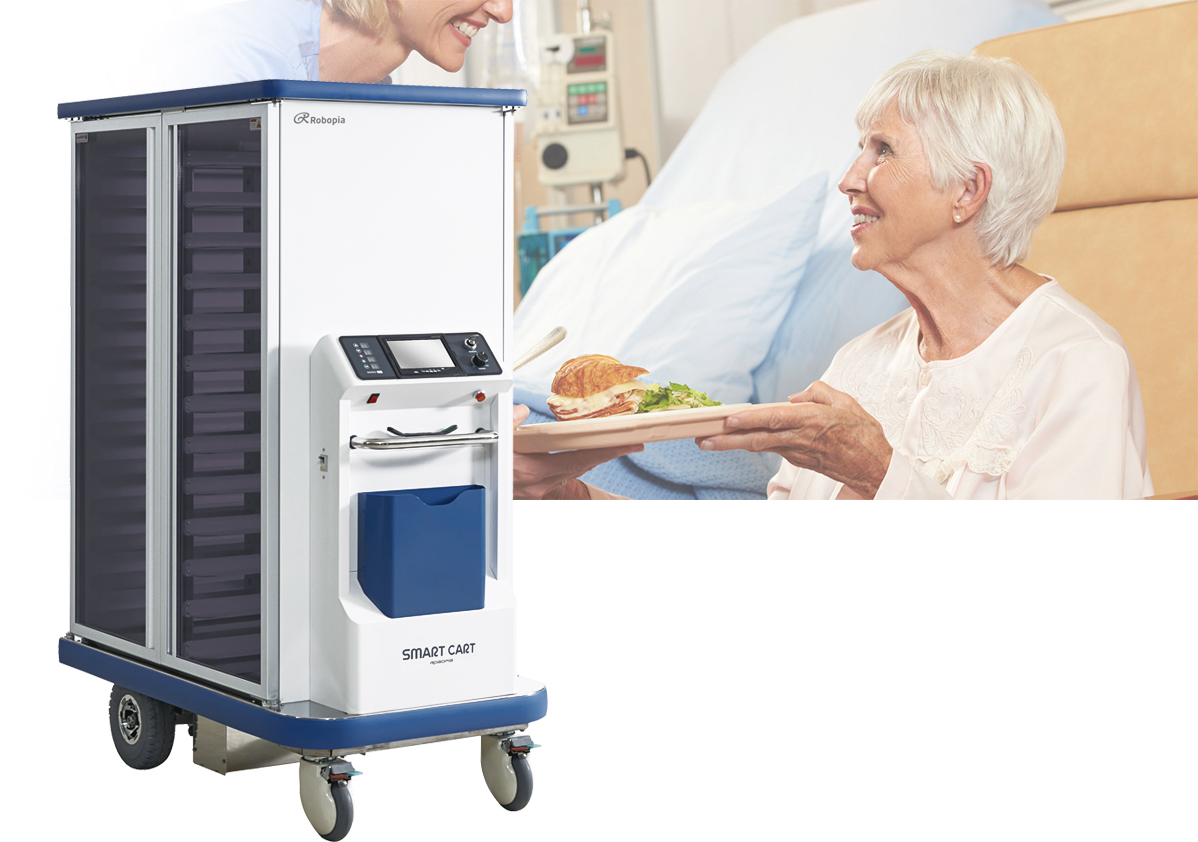

SMART Food Service Cart for Warm Patient Meal Distribution and Hygiene Management

- Provides warm meals with closed racks that are hygienic with high heat-insulation

- Shortens waiting time by reaching a warm temperature of 50°C with about
30 minutes of preheating during meal preparation

- No additional options are required as all functions for safe operation are
included as a standard (LCD monitor, rear camera, obstacle detection sensor,
reverse alarm, emergency stop switch)

조작 편의성

Convenient of Operation

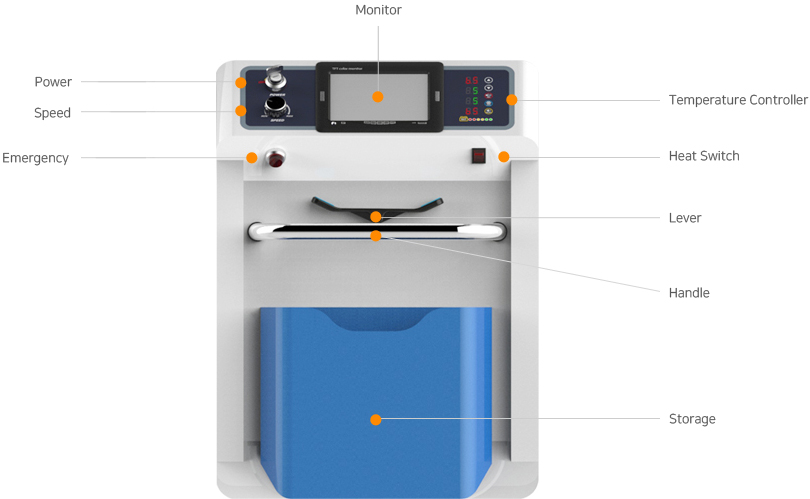

- Increased safe driving and work efficiency through front-focused controls and optimal user interface

- Easy operation through ergonomic handle design, secured steering stability and convenient constant speed maintenance

- Electric food service cart that can transport hospital patient meals easily and conveniently in small spaces inside the hospital

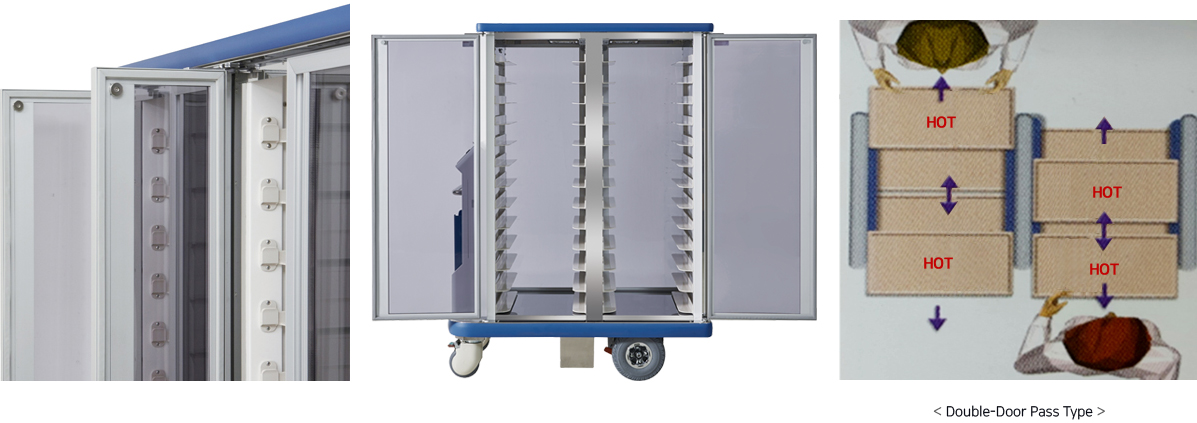

Insulated Pair Doors / Convenient Pass-Type Separator / Safe Racks

- Maintains uniform temperature with close-fit antibacterial packing door that considers the insulation
- Convenient double-door pass type separator for increased food-service efficiency even in small spaces
- Safe racks without sharpness during preparation with sturdy and high-density material injection racks

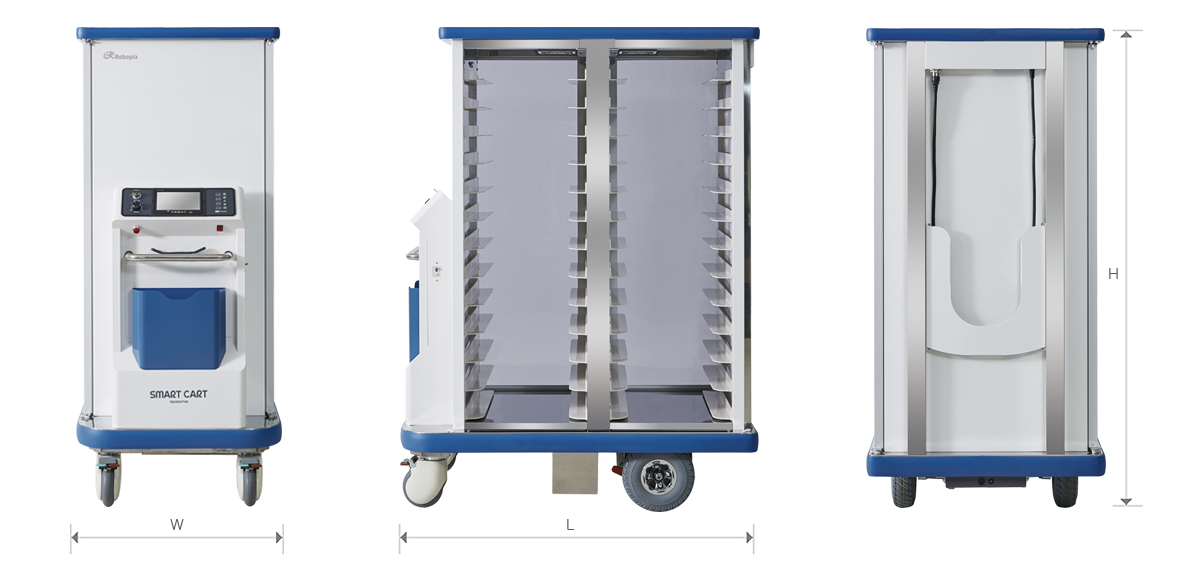

Specification

Model Trays
(pieces)		 Layers
(columns, rows)		 Length (mm) Width (mm) Height (mm) Weight
(Kg)		 Power
Consumption
(kW)		 Power
(PWR)
ELP-800H 52 4, 13 1280 745 1715 235 2.0 2P, 220V 50/60Hz
44 4, 11 1280 745 1515 220 2.0

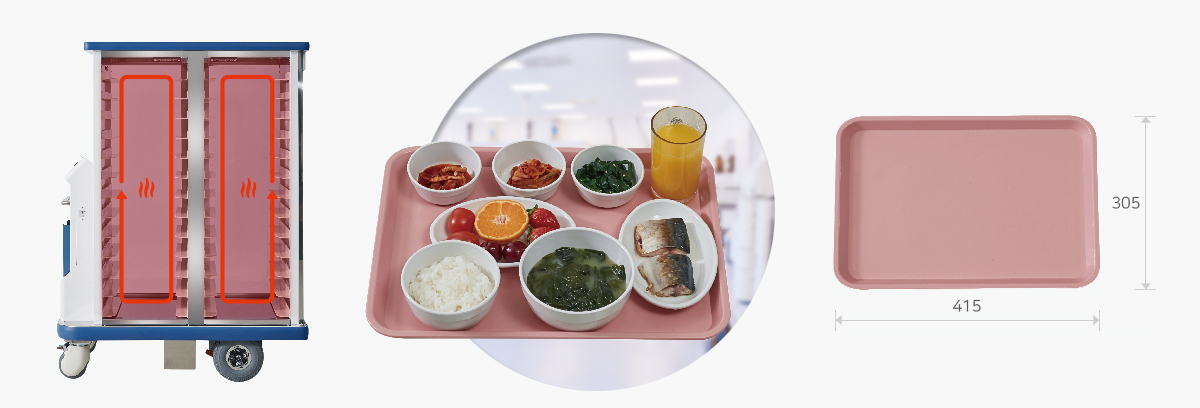

- Tray Size : Min 390x300mm ~ Max 415x305mm (Tray, tableware available)
- Battery charging time : 6~8 hours, battery usage time : 2.5 hours (depending on loads)
